AutoTune™ User Guide

5. Motorola ASTRO® XTS™ Series Radio Test Setup

In order to perform the test and alignment procedures, the ASTRO® XTL™ Series radio

must be connected to the R8000 Communications Systems Analyzer as shown in the

figure below.

Make certain that the radio under test is configured as described in the

corresponding diagram before attempting to perform the indicated alignment

or test. Failure to do so may result in poor radio performance and/or damage

to the analyzer or radio equipment under test.

5.1. ASTRO® XTS™ Series Test Setup

Refer to the diagram below for the proper test setup. Note that the correct setting for

each RLN4460 test set control is highlighted in yellow.

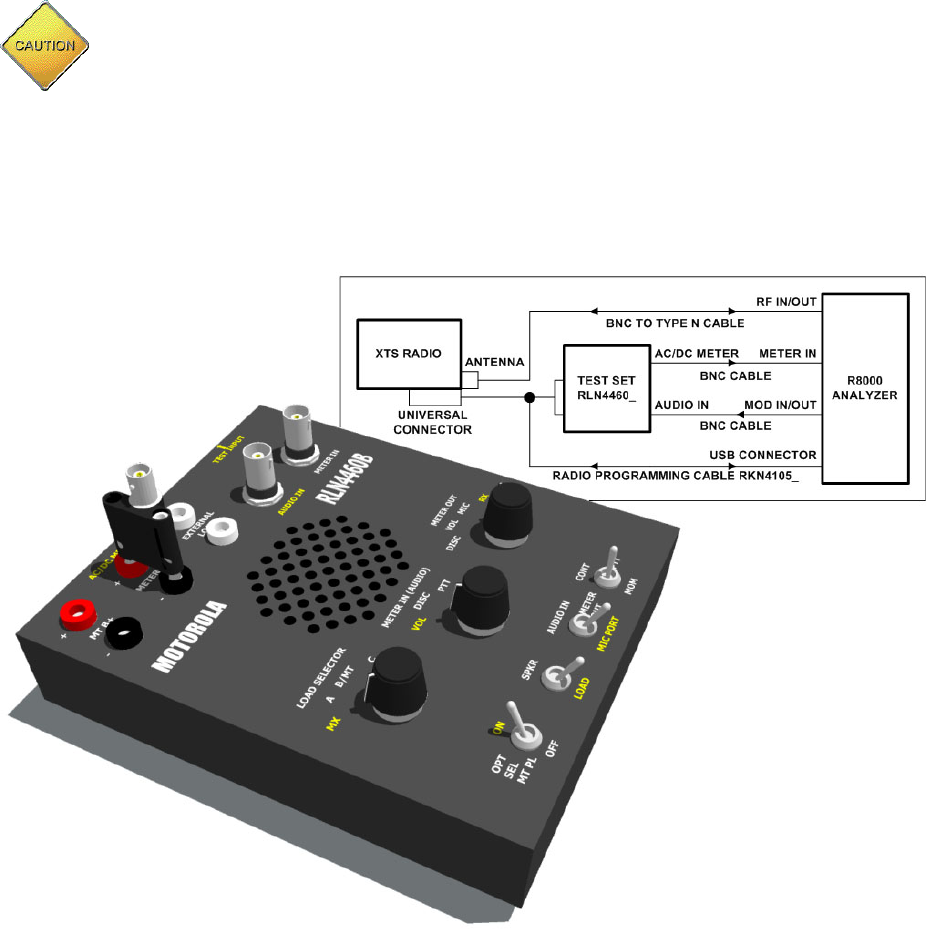

Figure 5-1. ASTRO® XTS™ Series Test Setup Diagram
